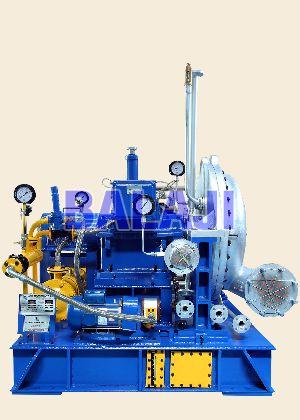

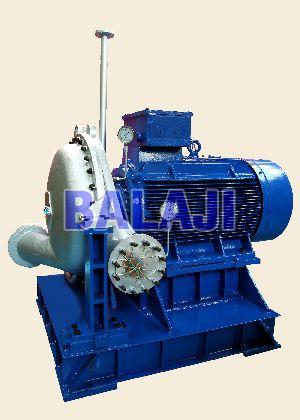

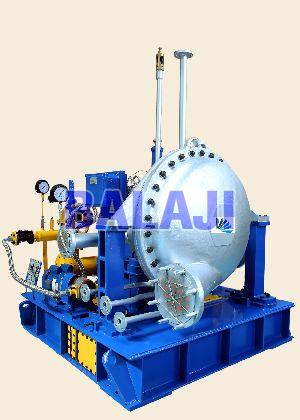

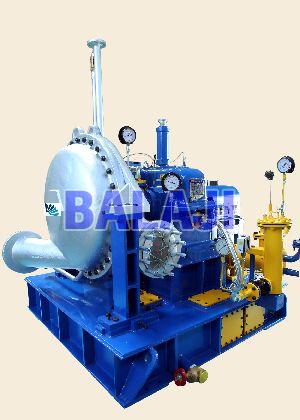

Steam Turbine
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Type | Back Pressure Steam Turbine, steam turbines |
| Style | Horizontal, Vertical |
| Certification | CE Certified, ISO 9001:2008, ISO |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Weight
3000-4000kg
Color
Blue
Fuel
Coal-fired, Oil, Steam
Condition
New, Old
Usage
Industrial, Power Station
Power
0-1000Kw, 4000-5000Kw
Driven Type
Mechanical
Pressure
High Pressure, Low Pressure
Structure
Air Cooled
Stage Structure
Multi Stage, Single Stage
Brand Name
NCON TURBOTECH PVT.LTD
After-sales Service Provided
YES
Product Name
Turbine
Product name
Micro Turbine
Product Code
LST
Port
ANY
Payment Terms
L/C
Delivery Time
90 dAYS
Steam Turbine works on revolutionary concept with a view to keep the cost to minimum. It has three different modules integrated to generate electrical power namely Turbine, Gearbox and Generator. Apart from this, oil pumps, oil cooler and oil filters are also the part of Steam Turbine. We are named among the renowned Manufacturers, Exporters and Suppliers of Steam Turbine. We manufacture Steam Turbine using quality approved components and advanced technology at our well-equipped production unit.
Features :
- NO - Gearbox / Lubricating system / Couplings / Alternator
- Retrofitted with existing low pressure stem boilers
- Power generation at almost ZERO cost
- Low RPM
- Very Compact, Indigenous manufacturing
- Low maintenance
- Pay back period about 12-15 months
- Modern PID based control system
- Light weight of special alloy
- Estimated life 10-12 years
- Design, Installation and Commissioning of a new turbine set within 9-10 weeks
- No special infrastructure required
Price Range : Ranging from Rs. 5 Lakhs to 2 Crore
Technical Specifications
| Models | 550B | MS 400-B | MS 660-EB/EC |
| Power level | 75 ~ 250 kW | 300 ~ 500 kW | 750kW ~ 3.0 MW |
| Turbine type | Single stage impulse/2- row Curtis | Multi-stage impulse | Multi-stage impulse |
| Turbine speed - RPM | 5300 | 7500 | 6000 |
| Application | Mechanical drive/Power generation | Mechanical drive/Power generation | Mechanical drive/Power generation |
| Inlet steam pr./temp. | Upto 42 kg/cm2g, 430 deg C | Upto 42 kg/cm2g, 430 deg C | Upto 42 kg/cm2g, 430 deg C |
| Extraction pr. | - | - | Upto 17Kg/cm2g |
| Back pr. | Upto 8.0 Kg/cm2g | Upto 8.0 Kg/cm2g | Upto 8.0 Kg/cm2g in BP and 0.1 Ata in cond. Mode |
| Turbine | Nozzle Chest | One set of main nozzles and two hand valves for multiple admission, Operational flexibility and optimal efficiency. |
| Nozzle & guide vanes | Aerodynamically designed airfoils for max. Efficiency. | |
| Turbine Blades | Latest profiles for high efficiency | |
| Turbine Discs | Forged steel with inserted blades, shrouded and machined for minimum tip leakage losses. | |
| Bearings | Hydrodynamically designed Journal and Journal cum Thurst bearings, white metal lined | |
| Seals 1 | Steam Side - Split Carbon Rings Oil Side - Phosphor bronze Labyrinth | |
| Governor 2 | Hydro-mechanical, Woodward or equivalent for Island mode operation. | |
| Governing valve | Combined throttle cum stop valve for governing and quick shut-off, built in strainer | |
| Gear Box | Type 3 | Single helical, parallel axes, single stage reduction gearbox, outpur RPM to match Customers specs. |
| Quality | Precision ground gears, profile corrected for low noise and high transmission efficiency. | |
| Bearings | Hydrodynamically designed Journal and Journal cum Thrust bearings, white metal lined. | |
| Service Factor | 1.8 to 2.0 | |
| Lubricant System | Pressurized oil circulation to all bearings and gears of turbine and gearbox, with MOP and Electrically driven AOP, Emergency Hand Pump – DC motor driven pump on request. | |
| Base Frame Cum Lube Sump | MS Fabricated, precision machined, with proviosn for lifting and grouting. Built in lube sump with level gauge, filler cum breather, drain and manholes for cleaning. | |
| Couplings | Choice of flexible element with dist. Pc & or Gear / Jaw type couplings. | |
| QSV Actuator | Double acting hydraulic cylinder. | |
| Alternator & Electricals | Alternator 4 | 4-Pole, lT alternator, (415 to 440V), KVA rating to match Customer, brushless, self-excited, self-regulated, IP-21 Protection Class, 1500 RPM, 0.8PF, Winding temp. protection using PTC’s RTD’s and BTD’s on request. |
| Integrated TG Set Panel | ACB / MCCB of suitable rating. Meters for V, A, kW, KWH, KVA, KVAR, PF, Hz Protection using Multi-function relay, Earth Leakage Relay Turbine control & health monitoring. | |
| Instruments | Speed | Electronic speed pick-up with digital tachometer for speed indication and over speed trip setting. |
| Temperature (Optional) | RTD’s with multi-channel scanner with relay output for alarm/trip. | |
| Axial displ. (Optional) | Proximity sensor with indicating meter, alarm and trip. | |
| Fail-Sage Trip & Alarm System | - Mechanical Over Speed trip - Axial displ. Trip - High brg. Temp. alarm - High casing pr. Alarm - Elecctronic Over Speed Trip - Low lube oil Pr. Trip - Filter Clog alarm - Breaker trip in the event of turbine trip. | |
| Materials of Construction | Turbine Castings | Cr. Alloy Steel Casting |
| Turbine Wheel | EN-19, Forged | |
| Turbine shaft | EN-24, Forged | |
| Rotor blades, nozzles & guide vanes | Hardened stainless steel for corrosion and erosion resistance. | |
| Steam Seal | Split Carbon rings on SS Housing | |
| Oil Seal | Phosphor bronze labyrinth | |
| Bearings | White metal lined on steel | |
| Gears | EN8/EN9 | |
| Gear shafts | EN8/EN9 | |
1 Zero leakage steam seal on request
2 Electronic governor on request
3 Speed Reversal Gear Arrangement Option for Mill Drive Applications on request
4 Induction Generator on request. HT System on request.
Note :
- The Company reserves the right to make changes withour notice in design, materials of construction, etc. In the interest of product improvement.
